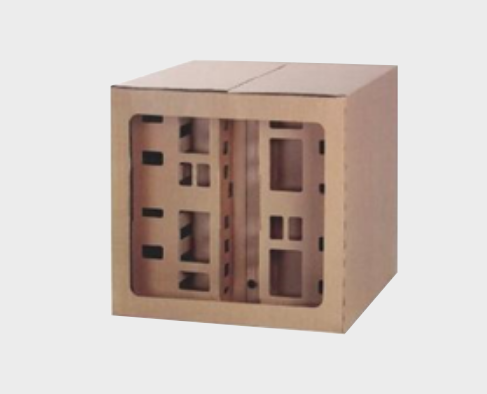

Large filtering surface area,low resistance,large air volume,high dust holding capacity,easy recovery of
materials and Venturi structure.According to the principle of inert separation,the unique vortex airflow
guide design can efficiently adsorb paint particles that exceed the range and force the airflow to change
the flow direction many times,so that those particles heavier than air will be adsorbed on the paper and
will not follow the airflow.Then the oversprayed paint particles begin to fil in the bottom of he pleats of
the filter paper,until the overspray paint particles are completely blocked,they need to be replaced,and
the capturing efficiency can reach more than 90%
It is widely used in dry painting spray booths,dry painting systems for automobilea,furniture,mechanical
parts,and complex assemblies af paint mist filtration or dust collection filtration systems in workshops
Type
Efficiency
Dimensions
(mm)
Rated Airflow(m³/h)
Initial Resistance(pa)
Paint Capacity(kg)
CR-MX
93%
480*480*300
420
45
7
485*485*490
450
65
12
500*500*500
500
70
13
